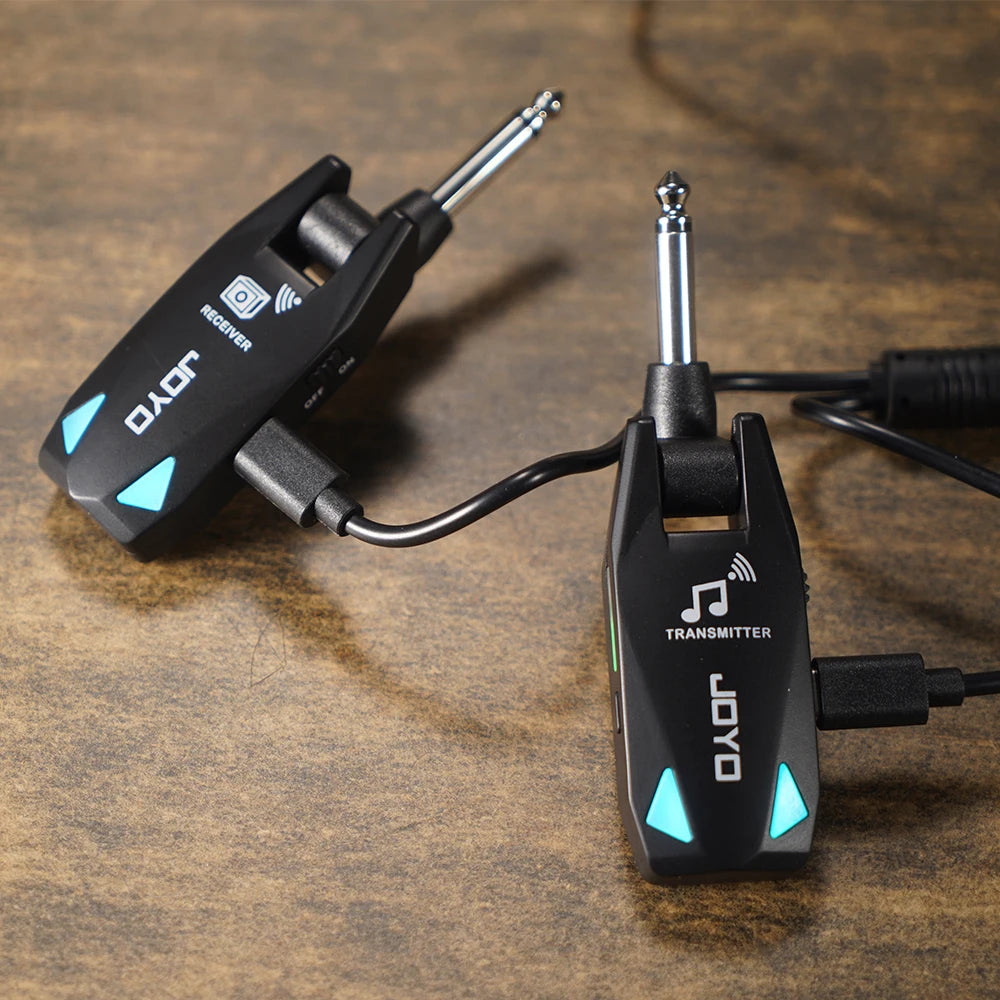

JOYO JW-08 Wireless Audio Transmitter Receiver Digital Wireless Guitar System UHF ISM 20-20kHz Frequency Band 6 Signal Channels

JOYO JW-08 Wireless Audio Transmitter Receiver Digital Wireless Guitar System UHF ISM 20-20kHz Frequency Band 6 Signal Channels

How to use?

1. How to pair up?
If JW-08 doesn't work properly, pease check up whether the transmitter and the receiver are connected successfully or not, take a look at the indicator, if they are flickering continuously and their color are not the same, you need to pair up again.

The procedures are as below:
When both the transmitter and receiver are powered on, first long press the button on the receiver until its status indicator flickers white. Then long press the button on the transmitter until its indicator flickers white as well. After a few seconds, the 2 devices will be paired up successfully, exit pairing mode return to normal operation and connect automatically.

2. How to switch the Channel banks:
If there is hum and noise during use, it means that there is strong signal interference in the current environment you need to double tap the transmitter switch once to switch the Channel banks, so as to avoid interference. JW-08 has 6 Channel banks in all, in red, green, blue, yellow, purple and cyan.

Description:

JW-08 has 6 Channel banks in all, it supports one-to-many, or multiple devices simultane-ously. You can switch the Channel banks by double tapping the transmitter's switch button, meanwhile, the receiver will pair up the cur-rent transmitter's Channel banks.

Features:

Real-Time Battery Monitoring:
4-Segment LED Indicator: Visually displays remaining battery level (eg,25%/50%/75%/100%) to prevent unexpected shutdowns.
Combines extended battery life with compact portability, ensuring safe and efficient operation on the go.

Ultra-Low Latency:
2ms Transmission Delay: Delivers near imperceptible audio sync for seamless listening.
Rapid Signal Response: Guarantees uninterrupted audio streaming—perfect for music, gaming, or live performances.

High-Fidelity Audio Quality:
Wide Frequency Response (20Hz–20kHz): Captures full sonic range from deep bass to crisp highs.
Stable & Flat Frequency Curve: Ensures accurate, distortion-free sound reproduction for studio-grade clarity.

Specifications:

Low latency: <2mS
Transmission distance: 30-50m
Distortion: <0.05%(@1kHz-10dBFS)
Wireless frequency band: UHF ISM frequency band
Channel bank's quantity: 6
Battery: Built-in rechargeable lithium battery 3.7V/500mAh
over 6hrs battery life once fully charged
Dimensions: 73*34*31mm (when one transmitter or receiver folds up)
Weight: 70g

Purcahse Note:

1. If JW-08 doesn't work properly, please check up whether the transmitter and the receiver are connected successfully or not, take alook at the indicator, if they are flickering continuously and their color are not the same, you need to pair up again.
2. If there is hum and noise during use, it means that there is strong signal interference in the current environment, you need to double tap the transmitter switch once to switch the Channel banks, so as to avoid interference. JW-08 has 6 Channel banks in all, in red, green, blue, yellow, purple and cyan.

Package List:

1* JOYO JW-08 Wireless AudioTransmitter Receiver
1* USB Cable
1* User Manual
